For Negative Pressure Working Condition DN150 Rotary Airlock Valve
Product Introduction

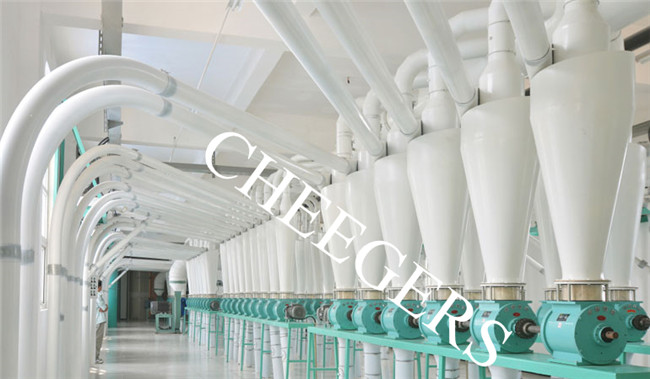

To be used under negative pressure conveying cyclone, flow-through
rotary airlock valve adopts detached foundry, of which all
components have been precisely processed before assembling. It has
exquisite configuration and anti-blocking design, which can solve
material stuck problem without dismantling. The hole at the end of
bearing is for observing sealing efficiency at any time, and the
observation window on the top is for following up the process of
discharging. This type of valve offers series connection solution,
using single power to drive multi-valves. Ultimately, it can save
energy and reduce purchasing cost.
Cheegers Rotary Valve Model Interpretation
| Chegers Machinery RV Series Rotary Valve Model Interpretation |
| Model Format:Product Model.Classification Model--Equipment Volume
Like RV-D.P-12L |
| Note: If there is a parallel classification relationship, it should
be arranged in the order of feeding form, pressure, wear
resistance, micro feeding and cleaning type, and the English stop
".Interval for example: tangential normal pressure wear resistant
fast cleaning 12L drop-through rotary valve——RV-D.T.N.AR.SC-12L |
| Product Model | English Interpretation |
| RV-B | Rotary Valve-Blow Through |
| RV-D | Rotary Valve-Drop Through |
| Classification Model | |
| T | Tangential |
| SC2 | Self-Cleaning 2 |
| SC1 | Self-Cleaning 1 |
| N | Normal Discharge |
| P | Positive Pressure |
| V | Vacuum |
| QC | Quick-Cleaning |
| M | Micro |
| PI | Pulse Inject |
| AR | Abrasion-Resistant |
| HP | High Pressure |
| HT | High Temperature |
| Note: Flange standard, material requirements, accessories,
transmission form, power configuration and so on are explained in
the product remarks. |
Dimension Display
Type | External dimension | Inlet | Outlet | Install size | Shaft |
| A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Main Features of Rotary Airlock Valve :
Highly economical
Broad range of application
Low energy consumption
Excellent sanitation
Application
Handling Material
With small size, elegant appearance, compact structure, convenient
operation etc, it is widely used in grain, food, feed, grease,
chemicals, electric power, port and wharf, storage and
transportation industries etc.
For different sizes, shapes handling material with different
charateristics, we have professional plans and solutions to deal
with them in pneumatic conveying system.
Processing Procedure
For every production step our workers are carefully finished. QC
department is strictly following the quality standard by 100%
inspection for all the products. Cheegers never stop
studying,researching and developing new designs on rotary valves.
Each year, we will launch new designs which suit different
application conditions.
Certificate
Cheegers has got the CE for rotary valve and diverter valve as
below:
We also have other patents for rotary valve and diverter valve
domestically.
Like high airtight rotary airlock valve patent, apprearance patent
for airlock valves, etc
