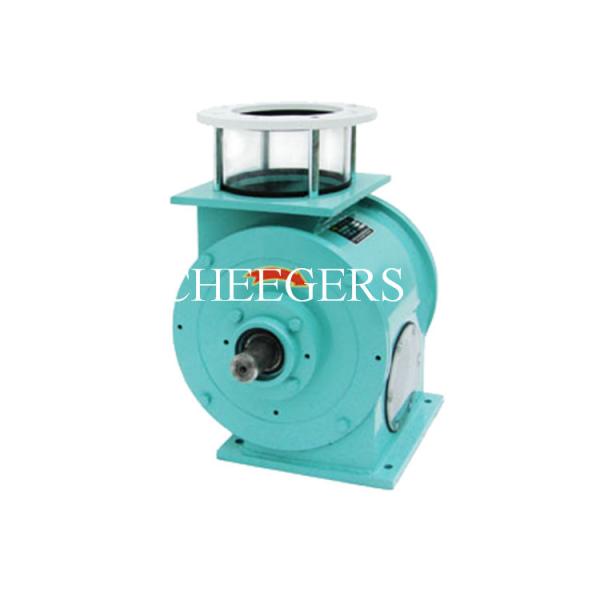

Particularly For Particles Discharge Tangential Flange Side-Entry Rotary Airlock Valve

Product Features

Material is stainless steel, carbon steel, cast iron, etc.

Double embedded bearings, with good strength and precision;

Special anti-blocking design to avoid particle shearing during operation;

High-strength valve body and shaft can bear high pressure and run smoothly;

Housing and main parts are made of precision casting, and exquisite appearance;

Dimension Display

Product Introduction

To be used under negative pressure conveying cyclone, flow-through rotary airlock valve adopts detached foundry, of which all components have been precisely processed before assembling. It has exquisite configuration and anti-blocking design, which can solve material stuck problem without dismantling. The hole at the end of bearing is for observing sealing efficiency at any time, and the observation window on the top is for following up the process of discharging. This type of valve offers series connection solution, using single power to drive multi-valves. Ultimately, it can save energy and reduce purchasing cost.

Explosive Drawing :

Application

Handling Material

With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.

For different sizes, shapes handling material with different charateristics, we have professional plans and solutions to deal with them in pneumatic conveying system.

Certificate

Cheegers has got the CE for rotary valve and diverter valve as below:

We also have other patents for rotary valve and diverter valve domestically.

Like high airtight rotary airlock valve patent, apprearance patent for airlock valves, etc
