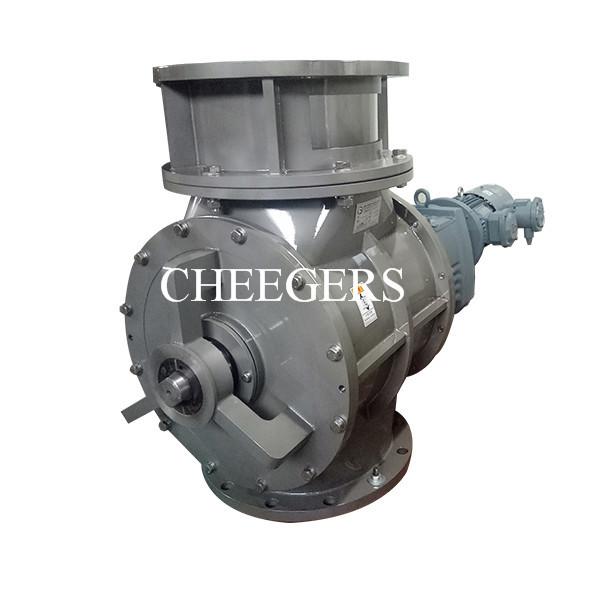

Heavy Duty Hardox Steel Bulk Solids Conveying Direct Coupling
Rotary Airlock Valve
Product Introduction
Standard rotary airlock valve is widely and commonly used. The
handling material enters from the top of the rotary airlock valve
and is discharged from the bottom of the rotary airlock valve. A
flow-through rotary airlock valve is applied in pneumatic and a
low-pressure system, for example, used under dust collectors. Our
rotary valve has a simple and separable structure, can be easily
dismantled and installed. Through aging treatment, housing has
little deformation. We adopt high-quality wear-resistant alloy
sliding bearings and equip them outboard, which reduces the
possibility of getting stuck.
Features
Durable material
Appearance elegant
Material: nodular cast iron
Fast to install and dismantle
Anti material clogging design, low noise
Smooth rotation, good airlock performance
Dimension Display
Type
| External dimension | Inlet | Outlet | Install size | Shaft |
| A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Cheegers Rotary Valve Model Interpretation
| Chegers Machinery RV Series Rotary Valve Model Interpretation |
| Model Format:Product Model.Classification Model--Equipment Volume
Like RV-D.P-12L |
| Note: If there is a parallel classification relationship, it should
be arranged in the order of feeding form, pressure, wear
resistance, micro feeding and cleaning type, and the English stop
".Interval for example: tangential normal pressure wear resistant
fast cleaning 12L drop-through rotary valve——RV-D.T.N.AR.SC-12L |
| Product Model | English Interpretation |
| RV-B | Rotary Valve-Blow Through |
| RV-D | Rotary Valve-Drop Through |
| Classification Model | |
| T | Tangential |
| SC2 | Self-Cleaning 2 |
| SC1 | Self-Cleaning 1 |
| N | Normal Discharge |
| P | Positive Pressure |
| V | Vacuum |
| QC | Quick-Cleaning |
| M | Micro |
| PI | Pulse Inject |
| AR | Abrasion-Resistant |
| HP | High Pressure |
| HT | High Temperature |
| Note: Flange standard, material requirements, accessories,
transmission form, power configuration and so on are explained in
the product remarks. |
Explosive Drawing:
Handling Material
With small size, elegant appearance, compact structure, convenient
operation etc, it is widely used in grain, food, feed, grease,
chemicals, electric power, port and wharf, storage and
transportation industries etc.
For different sizes, shapes handling material with different
charateristics, we have professional plans and solutions to deal
with them in pneumatic conveying system.
Company Advantages
1. CHEEGERS Machinery Manufacture Co., Ltd. is a professional
supplier of rotary valve and diverter valve.
2. CHEEGERS is rebuilt in 2003 from the revolution of china
government factory CHIQI which built in 1958.
3. We have been in airlock for 63 years and are specialized in
producing all kinds of Rotary Airlock Valve.
4. At present, our products have been exported to Thailand, Canada,
Indian, Morocco, Switzerland, Australia, Africa and others.
5. We have established long-term, stable and good business
relationships with many manufacturers (Buhler) and wholesalers
around the world.
