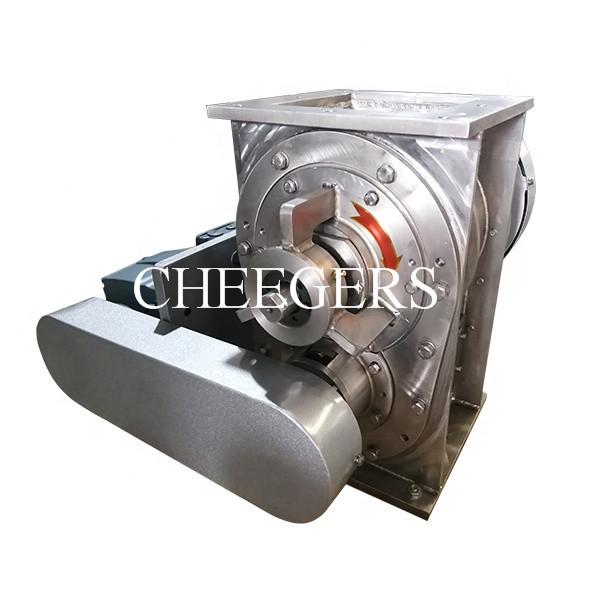

    Sunflower Husks Self Cleaning Rotary Valve 2 Tons/hr 0.75KW

    Ask Lasest Price
    Brand Name : CHEEGERS
    Model Number : RV-D.FC-2.5L
    Certification : CE
    Price : USD 240~7800 unit
    Payment Terms : T/T, D/P, L/C, Western Union, MoneyGram, D/A
    Supply Ability : 200 units per month
    Delivery Time : 45-50 days
    • Product Details
    • Company Profile

    Sunflower Husks Self Cleaning Rotary Valve 2 Tons/hr 0.75KW

    Enforced Mechnical Self-Cleaning Rotary Valve For Or Oily Sunflower Husks

    Product Introduction

    1. Mechnical Forced Self Cleaning Rotary Valve is a compact mechanical device for continuously discharging bulk powders or granules under gravity flow.

    2. This is a rotary valve with a scraper unit for sticky materials.
    3. It can be used for any product where a sticky residue builds up in the rotor.

    4. By definition it is the simplest of machines having only one moving part (ignoring the drive).

    5. A multi-vane rotor revolving in close contact in the housing and where the housing has an inlet at the top, and an outlet at the bottom.
    * Control product flow rate to the required rate (fixed or variable)

    * Maintain a gas pressure differential between the inlet & outlet (airlock)

    * Act as an explosion barrier

    * Act as a Flame Barrier

    * Act as a process isolator / barrier

    Despite its simplicity it offers several functional uses:

    Product Name
    Enforced Self Cleaning Rotary Valve
    Materialcarbon steel, stainless steel
    ColorOptional
    BearingSKF
    Blade10 blades
    Clerance0.08mm-0.12mm
    Drive TypeChain drive or Direct coupling
    MotorSEW, Siemens, Guomao, Evergear,etc

    Advantages:

    • Ensures the trouble-free operation of the system when handling bulk solids having a tendency to stick, form coats and clot.

    • Prevents expensive system standstills (e.g. cleaning) and production failures.

    • Can be adapted to the prescribed or existing cross-section openings

    • Can also be retrofitted if conventional rotary valves have failed

    Applications
    * Environment industry *Metallurgy industry *Chemical industry *Food industry * Grain industry * Other industries

    Characteristics:

    • For poorly flowing, humid products

    • When vapours coming up from downside

    • Rounded chambers

    • Forced scraper; counter-rotating with respect to the rotor; ensure complete emptying of the chambers

    • Common drive for the rotor and the scraper using synchromesh gears

    • External bearing

    • Pressure-shock-resistant up to 2 bar

    • Sizes: from 200 x 200 mm to 500 x 800 mm

    • Capacity range: 2 - 200 m³/h

    Design Details

    Overseas Exhibitions

    Handling Material

    With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.

    For different sizes, shapes handling material with different charateristics, we have professional plans and solutions to deal with them in pneumatic conveying system.

    Processing Procedure

    For every production step our workers are carefully finished. QC department is strictly following the quality standard by 100% inspection for all the products. Cheegers never stop studying,researching and developing new designs on rotary valves. Each year, we will launch new designs which suit different application conditions.


    To choose a suitable rotary valve, please provide us with the below information?
    What's your handling material?

    What's the bulk density of the handling material?

    What equipment is to be used above the rotary valve?

    What equipment is to be used under the rotary valve?

    How many tons per hour need to be handled?
