For Feeding Bulk Materials Pneumatic Rotary Valve For Flour Mill
Plant
Product Description

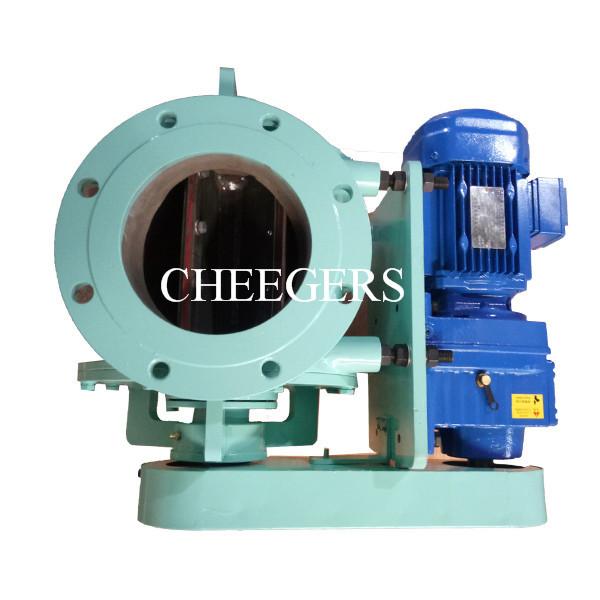

RV-D.V series pneumatic rotary valve mainly consists of casing,
impeller, bearing seat, observation window and other parts.
1. Casing: In order to reduce weight, increase strength and reduce
deformation during processing, the casing uses steel tubes.
2. Observation window: The observation window is connected with the
upper and lower glands with rubber sleeves, which is convenient for
assembly and disassembly, and can quickly troubleshoot.
3. Impeller: The impeller blades form an angle of 5 degrees on the
axis and spiral into the casing, which reduces the torque when the
impeller rotates and improves the conveying effect of materials.
4. Transmission mechanism: In order to adapt to the use in
different places, the main shaft adopts two structural forms of
series transmission and separate transmission. The tandem drive
adopts the shaft pin connection form, which is convenient for
assembly and disassembly, light and handy, compact structure, and
convenient for installation.
Cheegers Rotary Valve Model Interpretation
| Chegers Machinery RV Series Rotary Valve Model Interpretation |
| Model Format:Product Model.Classification Model--Equipment Volume
Like RV-D.P-12L |
| Note: If there is a parallel classification relationship, it should
be arranged in the order of feeding form, pressure, wear
resistance, micro feeding and cleaning type, and the English stop
".Interval for example: tangential normal pressure wear resistant
fast cleaning 12L drop-through rotary valve——RV-D.T.N.AR.SC-12L |
| Product Model | English Interpretation |
| RV-B | Rotary Valve-Blow Through |
| RV-D | Rotary Valve-Drop Through |
| Classification Model | |
| T | Tangential |
| SC2 | Self-Cleaning 2 |
| SC1 | Self-Cleaning 1 |
| N | Normal Discharge |
| P | Positive Pressure |
| V | Vacuum |
| QC | Quick-Cleaning |
| M | Micro |
| PI | Pulse Inject |
| AR | Abrasion-Resistant |
| HP | High Pressure |
| HT | High Temperature |
| Note: Flange standard, material requirements, accessories,
transmission form, power configuration and so on are explained in
the product remarks. |
Dimension Display
Type | External dimension | Inlet | Outlet | Install size | Shaft |
| A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Application
Overseas Exhibitions
Processing Procedure
1. CHEEGERS Machinery Manufacture Co., Ltd. is a professional
supplier of airlock, rotary valve
2. CHEEGERS is rebuilt in 2003 from the revolution of china
government factory CHIQI which built in 1958
3. We have been in airlock for 63 years and are specialized in
producing all kinds of Rotary Airlock Valve.
4. At present, our products have been exported to Thailand, Canada,
Indian, Morocco, Switzerland, Australia, Africa and others. We have
established long-term, stable and good business relationships with
many manufacturers (Buhler) and wholesalers around the world.
For every production step our workers are carefully finished. QC
department is strictly following the quality standard by 100%
inspection for all the products. Cheegers never stop
studying,researching and developing new designs on rotary valves.
Each year, we will launch new designs which suit different
application conditions.
Certificate
Cheegers has got the CE for pneumatic rotary valve and diverter
valve as below:
We also have other patents for rotary valve and diverter valve
domestically.
Like high airtight rotary airlock valve patent, apprearance patent
for airlock valves, etc
