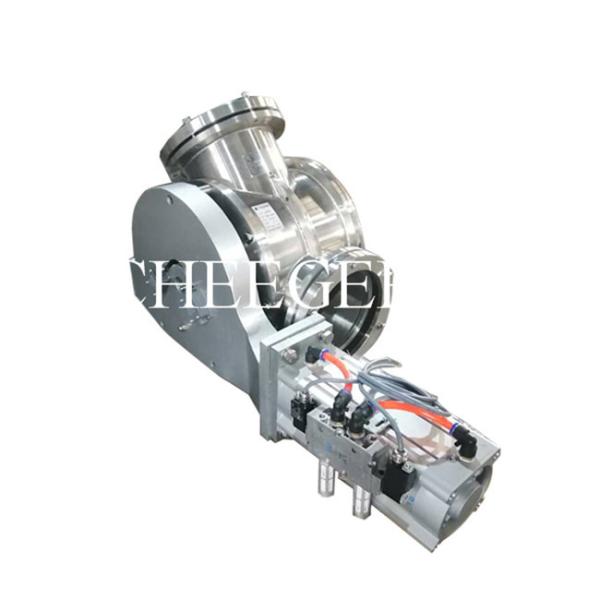

304L & 316L Stainless Steel Sanitary Pneumatic DN250 Rotary Reversing Valve

Product Application

Rotary Reversing Valve (two-way valve) in series THFX is used to change the direction of stock flow in pneumatic conveying systems. It can change the direction of flowing stock in the pipe without stopping the stock feed or air supply, and convey it to 2 destination choices. If several valves are used in group, the stock can be convenient i. It is widely used to change the flow direction in positive or negative pressure conveying and low speed conveying pipelines of powdery or granular materials such as flour, bran, starch, grain, feedstuff, sugar, chemicals, plastics, etc., and can convey the stock to selected destinations. However, it is not suitable for highly sticky materials.

Main Features

1) The Rotary Reversing Valve (two way valve) is mainly used for changing the direction of powder materials or small granular materials in pipes by pneumatic conveying system.

2) The Rotary Reversing Valve (two way valve) can be sent the material to two different locations during incoming material condition.

3) In the system line switching, the Rotary Reversing Valve (two way valve) provides two different lines to make the material into or bypass certain processing.

4) With pneumatic, electric and manual switching line way, the machine body material can be cast iron and stainless steel.

5) The Rotary Reversing Valve (two way valve) can be widely used in pneumatic conveying system of flour, bran, starch, grain, feed, sugar, chemical products, plastics powder materials or bulk solid materials in flour mills, food factories, chemical factories, feed mills, rice mills etc.

Specifications

Cast Iron Diverter valve Cast Iron Diverter valve

seals type flange Welded flange

Type	Pneumatic two way valve size
	A	B	C	C1	D	D1	Dg	d0	L	L1	L2	L3	M	Φ
THFX6.5X2	100	80	85	155	80	158	65/68	73/76	95	20	330	575	M8	8
THFX8X2	115	100	98	165	90	176	80/86	89/95	105	20	320	575	M10	8
THFX10X2	140	120	105	175	95	198	100/106	108/114	120	20	315	590	M10	10
THFX12X2	170	140	125	195	110	230	120/125	130/133	140	20	345	695	M12	10
THFX15X2	210	160	140	215	125	265	150/158	159/168	160	22	355	715	M12	10
THFX18X2	240	180	155	230	135	295	170/180	180/190	175	22	365	715	M12	10
THFX20X2	280	220	175	260	155	335	203	219	200	25	425	875	M12	10

Factory Overview

Cheegers is dedicated to developing our global market ourself since 2013. Earlier than 2013, our rotary valves are exported to overseas by engineering and trading companies.

After we do export ourself, our rotary valve,diverter valve and magnet separator have been exported to more than 30 countries, likeThailand, Korea, Vietnam, Malaysia, Phillipine, Australia, Singapore, America, the UK, Canada,Mexico, South Africa, Dubai, Saudi Arabia, etc.

Over 60 years experience in this field makesCheegers always offer professional soluctions and designs for our customers from differentindustries. We offer standard and non-standard valves , OEM and OMD are accepted.

FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory with over 60 years of' professional research and development. We can provide the best price.
Q: What can we do if the product we received is different from your description?
A: If the product's quality is not consistent with the description we described or the promise before, we promise a 100% refund.
Q: How long is your delivery time?
A: Standard products are in stock, which takes a week to be ready for delivery. Non-standard valve takes 35 days for production.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
