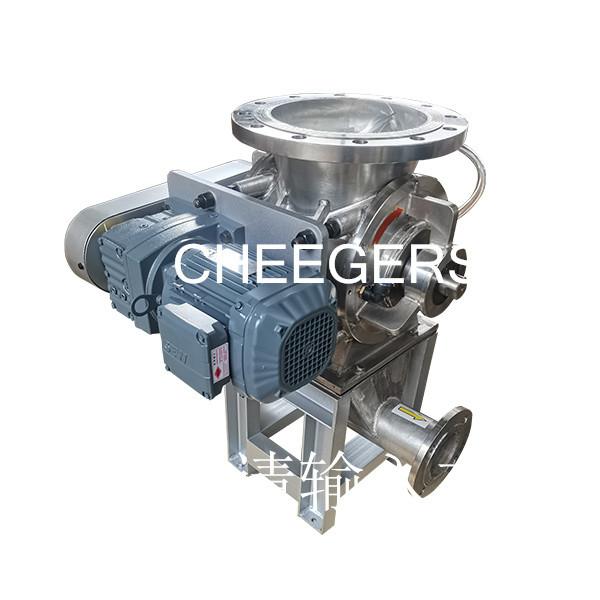

Rotary Discharge Valve for Cement Plant/Rigid Impeller Feeder
Pneumatic Valve
Product Introduction
★ Clearance to be 0.06mm, perfect airlock performance
★ Provide multiple installation methods of chain drive and direct
drive.
★ Configure reducer motors according to requirements.
★ The main materials are: cast iron, stainless steel series, etc.
★ The airtight performance can stand pressure to 1 bar.
★ External bearing installation, durable and excellent performance.
Drop through rotary valve is the standard unit and used in most
applications. Suitable for granular materials to gravity flow of
materials, such as plastic pellets, feed. Equipment at the bottom
of the accelerating chamber can improve transport efficiency and
prevents clogging.
Used in pneumatic conveying pipeline conveying material by high
pressure.Drop-through rotary valves are precision machined for tight tolerances, as with all of our
rotary airlocks, to insure minimal air leakage.
Drop through rotary airlocks are heavy duty design with high
quality material, thick blade rotors with oversized shafts,
outboard strong bearings and lifelong shaft seals.
Cheegers Rotary Valve Model Interpretation
| Chegers Machinery RV Series Rotary Valve Model Interpretation |
| Model Format:Product Model.Classification Model--Equipment Volume
Like RV-D.P-12L |
| Note: If there is a parallel classification relationship, it should
be arranged in the order of feeding form, pressure, wear
resistance, micro feeding and cleaning type, and the English stop
".Interval for example: tangential normal pressure wear resistant
fast cleaning 12L drop-through rotary valve——RV-D.T.N.AR.SC-12L |
| Product Model | English Interpretation |
| RV-B | Rotary Valve-Blow Through |
| RV-D | Rotary Valve-Drop Through |
| Classification Model | |
| T | Tangential |
| SC2 | Self-Cleaning 2代 |
| SC1 | Self-Cleaning 1代 |
| N | Normal Discharge |
| P | Positive Pressure |
| V | Vacuum |
| QC | Quick-Cleaning |
| M | Micro |
| PI | Pulse Inject |
| AR | Abrasion-Resistant |
| HP | High Pressure |
| HT | High Temperature |
| Note: Flange standard, material requirements, accessories,
transmission form, power configuration and so on are explained in
the product remarks. |
Dimension Display
| Model | L | W | H | H0 | H1 | E | E0 | E1 | E2 | E3 | F | F0 | F1 | F2 | F3 | N | D | DN |
| BFCZ2.5 | 455 | ~490 | 570 | 150 | 280 | 210 | 130 | 180 | 80 | 210 | 210 | 130 | 180 | 100 | 152 | 8 | ϕ10 | 50 |
| BFCZ5.5 | 580 | ~580 | 690 | 205 | 340 | 280 | 200 | 250 | 150 | 250 | 250 | 170 | 220 | 120 | 220 | 8 | ϕ12 | 65 |
| BFCZ8.5 | 635 | ~640 | 810 | 245 | 400 | 330 | 250 | 300 | 180 | 330 | 330 | 250 | 300 | 180 | 270 | 8 | ϕ12 | 100 |
| BFCZ13.5 | 660 | ~660 | 850 | 245 | 420 | 360 | 270 | 330 | 200 | 340 | 340 | 240 | 300 | 180 | 296 | 8 | ϕ14 | 100 |
| BFCZ28 | 800 | ~800 | 1050 | 320 | 520 | 450 | 350 | 415 | 150 | 350 | 350 | 250 | 315 | 180 | 376 | 10 | ϕ14 | 125 |
| BFCZ56 | 870 | ~870 | 1180 | 320 | 650 | 510 | 410 | 475 | 180 | 410 | 410 | 310 | 375 | 200 | 446 | 10 | ϕ14 | 150 |
Overseas Exhibitions
Cheegers has been engaged in exhibitions home and abroad for some
time, like Thailand, Turkey, Iran, Pakistan, etc.
We supply rotary valves for many brands in China, like Buhler,
Sataka, Cofco, Yihai Kerry, Muyang, etc.
Company Profile
Cheegers Machinery used to be government-owned grain machinery
factory. In 1958, the old fatory faced a reform, it became
private-owned factory only producing parts of the machineries,
rotary valve, diverter valve, magnet separator, used in grain &
flour industry only. Cheegers Machinery used to be government-owned
grain machinery factory. In 1958, the old fatory faced a reform, it
became private-owned factory only producing parts of the
machineries, rotary valve, diverter valve, magnet separator, used
in grain & flour industry only. Cheegers has two production bases,
covers an area of 20000 square meters . Accredited with ISO9001 and
CE.The production is 8000 units per year and turnover is more than
6 million dollar every year . Our main customers are Buhler, COFCO
, Sinograin, YIHAI KERRY , SATAKE and so on .Cheegers production
line is strictly running under the 5S management. Strict production
line guarantees high quality products.
How to specify your need? Welcome special customizations.
1. What's your handling material?
2. What's the required throughput? (tons/H or m3/H)
3. What's the air pressure upon and below the rotary valve?
4. What’s the material of rotary valve you want?
Any questions, please do contact me!
